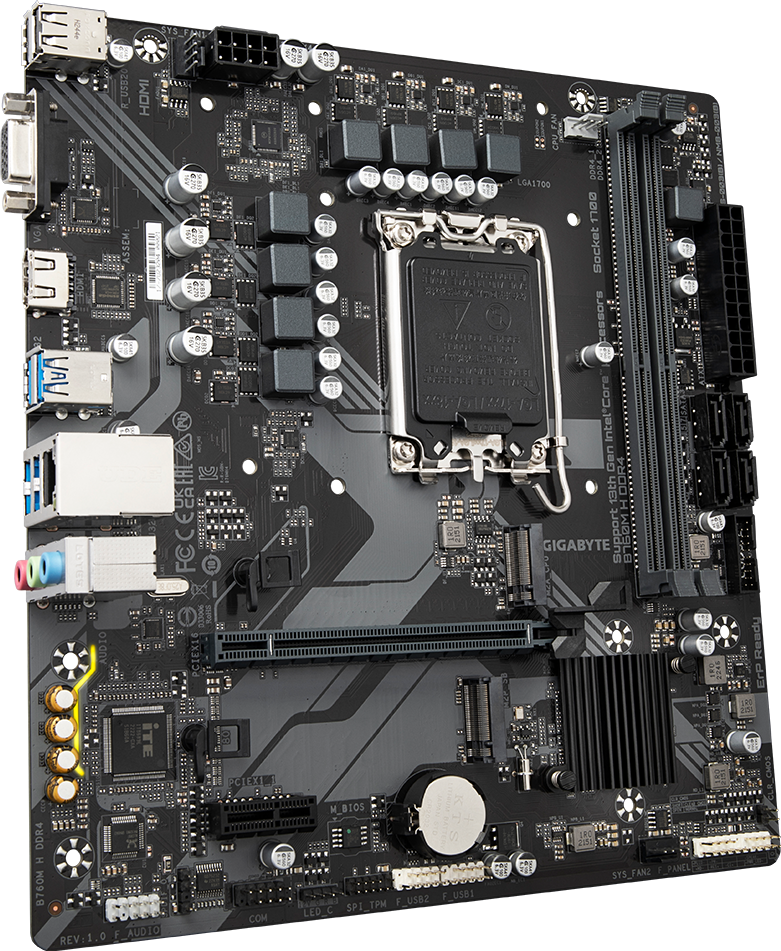

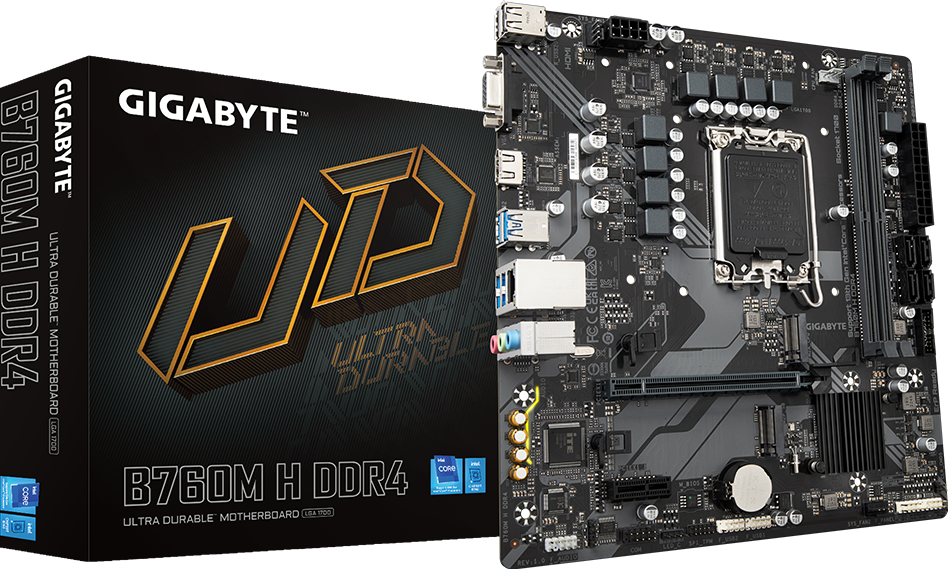

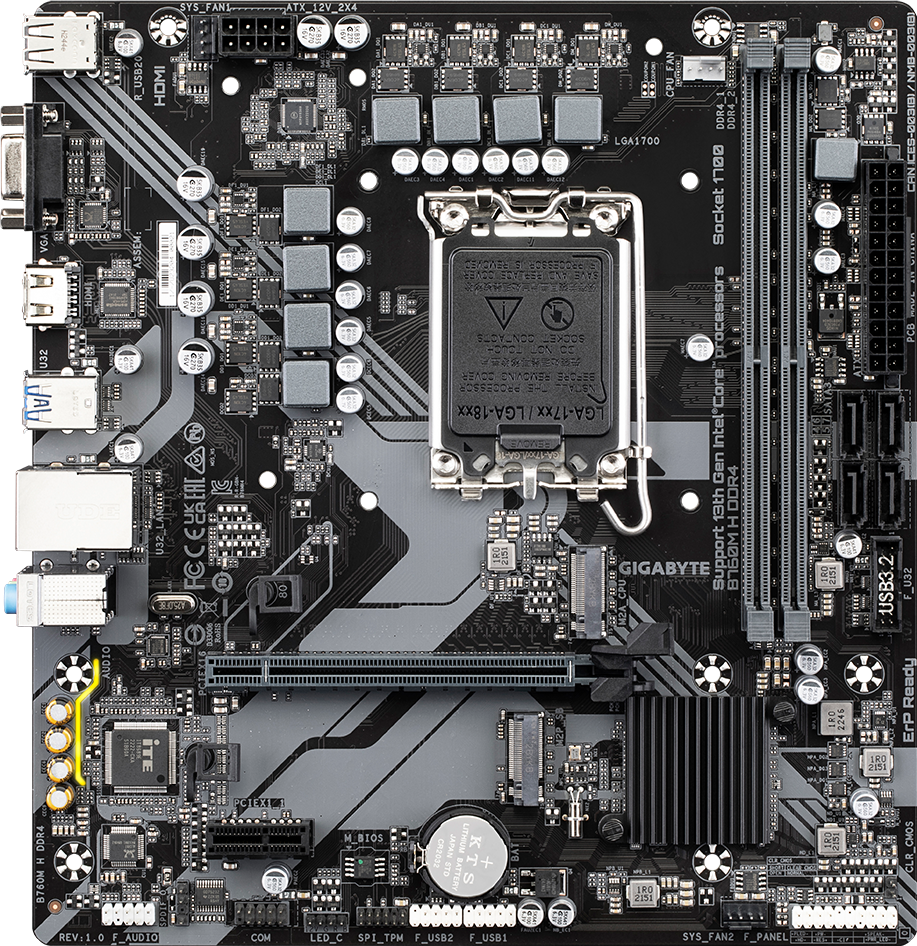

The GIGABYTE B760M H DDR4 is a Micro-ATX motherboard built on the Intel B760 Express chipset, supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors via an LGA1700 socket. It features 2x DDR4 DIMM slots supporting up to 64GB of dual-channel memory with XMP profiles up to 5333MHz+.
Storage and expansion options include one PCIe 4.0 x16 slot with an EZ-Latch quick-release mechanism, one PCIe 3.0 x1 slot, two M.2 slots (one CPU-connected PCIe 4.0 x4 and one chipset-connected PCIe 4.0 x4), and four SATA 6Gb/s ports with RAID 0/1/5/10 support.
The board is powered by a hybrid 6+1+1 phase digital VRM design with low RDS(on) MOSFETs for stable power delivery, paired with an 8-pin CPU power connector. Rear I/O includes HDMI and D-Sub video outputs, 4x USB 3.2 Gen 1 and 2x USB 2.0 ports, a Realtek Gigabit LAN port, and Realtek HD audio with multiple audio jacks.
With Smart Fan 6 offering multiple temperature sensors and fan-stop functionality, plus a 128Mbit AMI UEFI BIOS with Q-Flash support, the B760M H DDR4 delivers a solid, no-frills foundation for mainstream Intel builds prioritizing reliability and value over RGB extras.
